Dokumentation - Ritningar

Tillbaka

Obs: Tillgång till vissa dokument kräver att du har användaråtkomst och är loggat in. Om du inte är en registrerad användare kan du göra det här

Produkt
Ritningar, typer
Dörr version
Höjd dörrautomatik
Överglas
Sidopanel
Dörrglas
Språk
Sök

För att få fler resultat, lägg till "*" (stjärna) framför eller bakom sökordet.

39 dokument

Välj alla dokument i listan

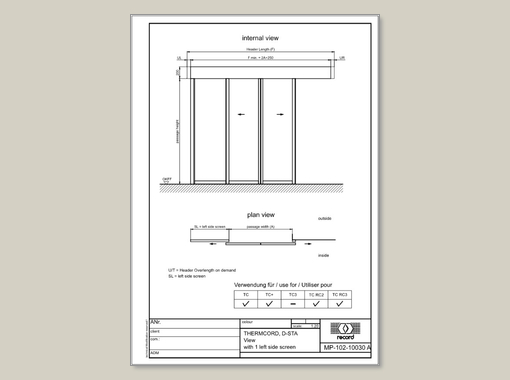

D-STA Elevation view with 1 side screen left
D-STA Elevation view with 1 side screen left

D-STA Elevation view with 1 side screen left
Drive height: 150 mm

DXF | EN
102-10003
Öppen

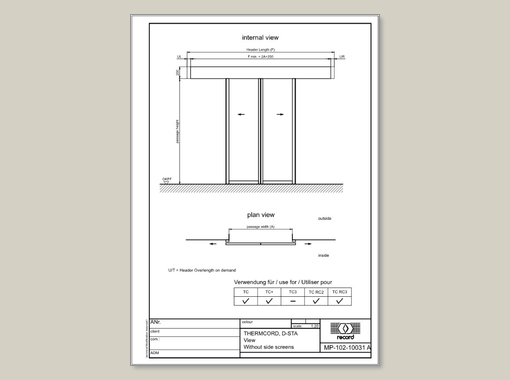

D-STA Elevation without side screens
D-STA Elevation without side screens

D-STA Elevation without side screens
Drive height: 150 mm

DXF | EN
102-10004
Öppen

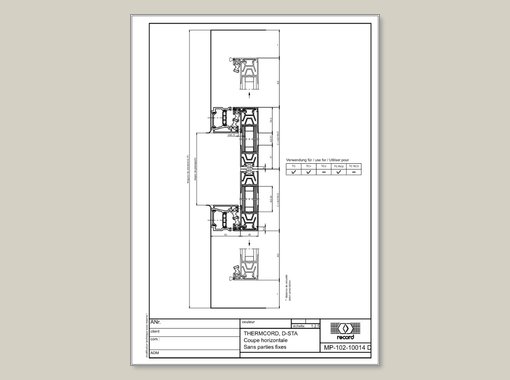

D-STA Horizontal view without side screens
D-STA Horizontal view without side screens

D-STA Horizontal view without side screens
with cladding

DXF | EN
102-10014
Öppen

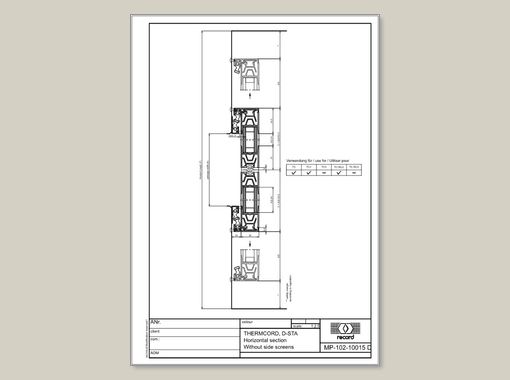

D-STA Horizontal view without side screens
D-STA Horizontal view without side screens

D-STA Horizontal view without side screens
without cladding

DXF | EN
102-10015
Öppen

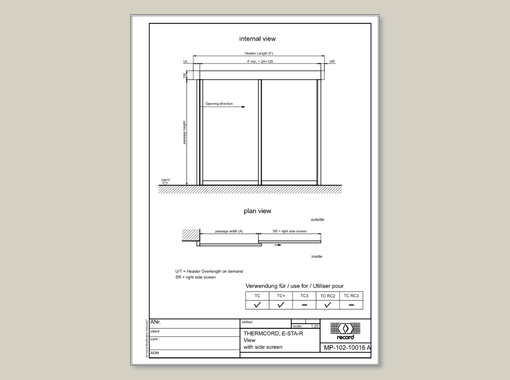

E-STA-R Elevation view with side screen
E-STA-R Elevation view with side screen

E-STA-R Elevation view with side screen
Drive height: 150 mm

DXF | EN
102-10016
Öppen

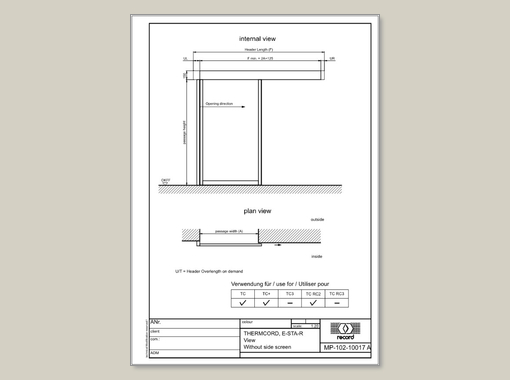

E-STA-R Elevation view without side screen
E-STA-R Elevation view without side screen

E-STA-R Elevation view without side screen
Drive height: 150 mm

DXF | EN
102-10017
Öppen
E-STA-R Horizontal view with side screen
E-STA-R Horizontal view with side screen

E-STA-R Horizontal view with side screen
self-supporting installation

DXF | EN
102-10018
Öppen
E-STA-R Horizontal view with side screen
E-STA-R Horizontal view with side screen

E-STA-R Horizontal view with side screen
lintel installation

DXF | EN
102-10019
Öppen
E-STA-R Horizontal view without side screens
E-STA-R Horizontal view without side screens

E-STA-R Horizontal view without side screens
with cladding


DXF | EN
102-10020
Öppen

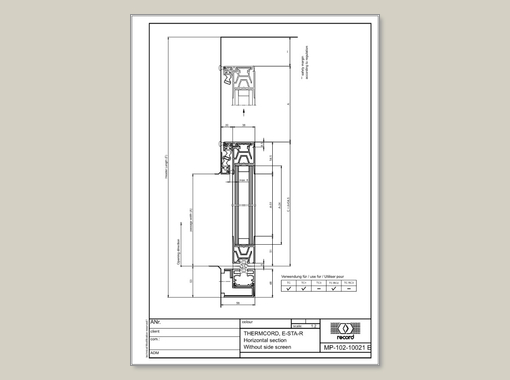

E-STA-R Horizontal view without side screens
E-STA-R Horizontal view without side screens

E-STA-R Horizontal view without side screens
without cladding

DXF | EN
102-10021
Öppen

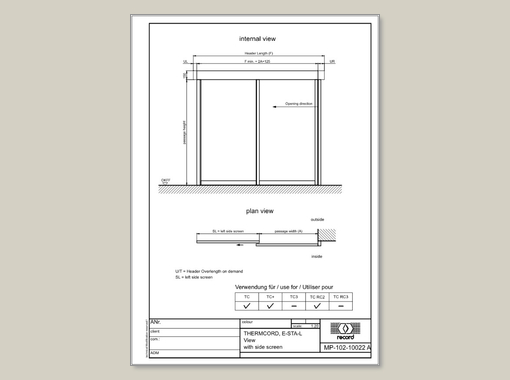

E-STA-L Elevation view with side screen
E-STA-L Elevation view with side screen

E-STA-L Elevation view with side screen
Drive height: 150 mm

DXF | EN
102-10022
Öppen
E-STA-L Elevation view without side screen
E-STA-L Elevation view without side screen

E-STA-L Elevation view without side screen
Drive height: 150 mm

DXF | EN
102-10023
Öppen
Horizontal view with side screen
Horizontal view with side screen

E-STA-L Horizontal view with side screen
self-supporting installation

DXF | EN
102-10024
Öppen

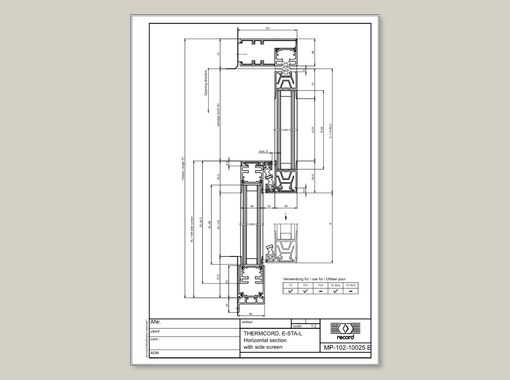

E-STA-L Horizontal view with side screen
E-STA-L Horizontal view with side screen

E-STA-L Horizontal view with side screen
lintel installation

DXF | EN
102-10025
Öppen

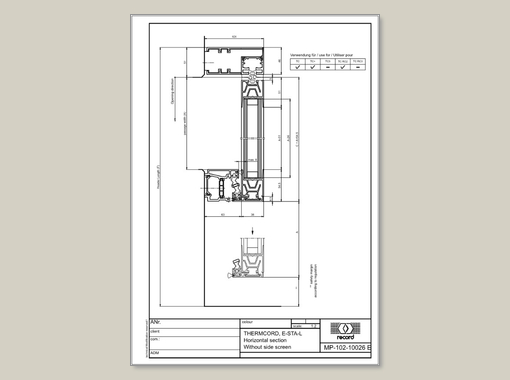

E-STA-L Horizontal view without side screens
E-STA-L Horizontal view without side screens

E-STA-L Horizontal view without side screens
with cladding

DXF | EN
102-10026
Öppen
D-STA Elevation view with 2 side screens
D-STA Elevation view with 2 side screens

D-STA Elevation view with 2 side screens
Drive height: 200 mm

DXF | EN
102-10028
Öppen
D-STA Elevation view with 1 side screen right
D-STA Elevation view with 1 side screen right

D-STA Elevation view with 1 side screen right
Drive height: 200 mm

DXF | EN
102-10029
Öppen
D-STA Elevation view with 1 side screen left
D-STA Elevation view with 1 side screen left

D-STA Elevation view with 1 side screen left
Drive height: 200 mm

DXF | EN
102-10030
Öppen
D-STA Elevation view without side screens
D-STA Elevation view without side screens

D-STA Elevation view without side screens
Drive height: 200 mm

DXF | EN
102-10031
Öppen

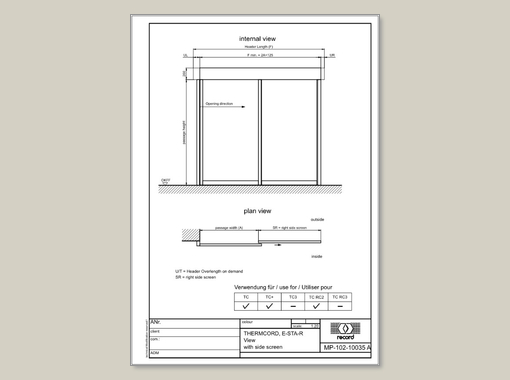

E-STA-R Elevation view with side screen
E-STA-R Elevation view with side screen

E-STA-R Elevation view with side screen
Drive height: 200 mm

DXF | EN
102-10035
Öppen
E-STA-R Elevation view without side screen
E-STA-R Elevation view without side screen

E-STA-R Elevation view without side screen
Drive height: 200 mm

DXF | EN
102-10036
Öppen
E-STA-L Elevation view with side screen
E-STA-L Elevation view with side screen

E-STA-L Elevation view with side screen
Drive height: 200 mm

DXF | EN
102-10037
Öppen

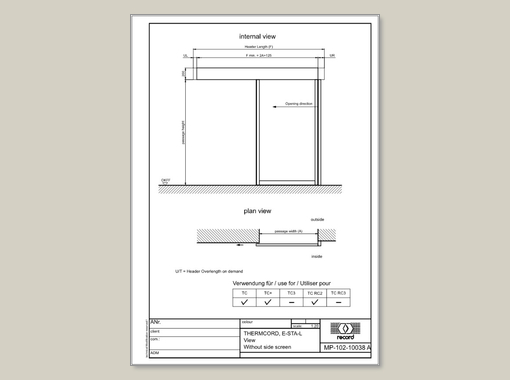

E-STA-L Elevation view without side screens
E-STA-L Elevation view without side screens

E-STA-L Elevation view without side screens
Drive height: 200 mm

DXF | EN
102-10038
Öppen

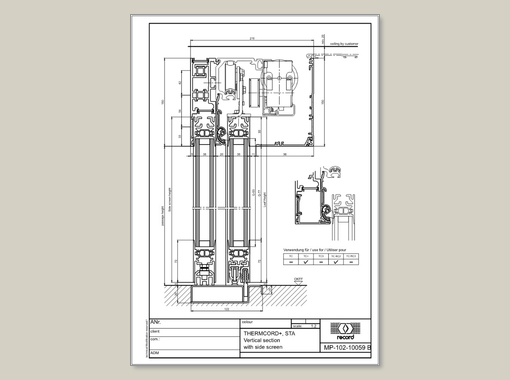

STA Vertical view with side screen
STA Vertical view with side screen

STA Vertical view with side screen
Drive height: 150 mm

DXF | EN
102-10059
Öppen

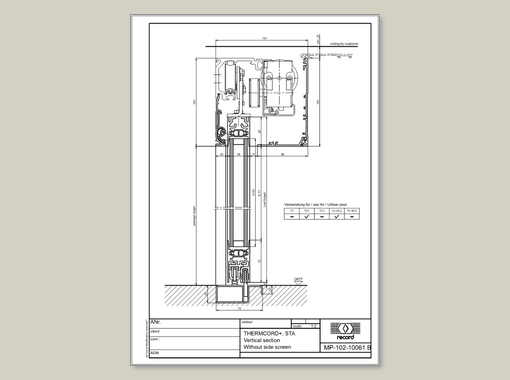

STA Vertical view without side screens
STA Vertical view without side screens

STA Vertical view without side screens
with cladding
Drive height: 150 mm

DXF | EN
102-10060
Öppen
STA Vertical view without side screens
STA Vertical view without side screens

STA Vertical view without side screens
without cladding
Drive height: 150 mm

DXF | EN
102-10061
Öppen
D-STA Horizontal view with 2 side screens
D-STA Horizontal view with 2 side screens

D-STA Horizontal view with 2 side screens
Self-supporting installation

DXF | EN
102-10008
Öppen
D-STA Horizontal view with 2 side screens
D-STA Horizontal view with 2 side screens

D-STA Horizontal view with 2 side screens
lintel installation

DXF | EN
102-10009
Öppen
D-STA Horizontal view with 1 side screen right
D-STA Horizontal view with 1 side screen right

D-STA Horizontal view with 1 side screen right
Self-supporting installation

DXF | EN
102-10010
Öppen
D-STA Horizontal view with 1 side screen right
D-STA Horizontal view with 1 side screen right

D-STA Horizontal view with 1 side screen right
lintel installation

DXF | EN
102-10011
Öppen
